Ident-ships

Bayern

Call sign : F217
Class : F123 Brandenburg class - General-purpose frigate
Country : Germany
Favorite :
Error in the images :

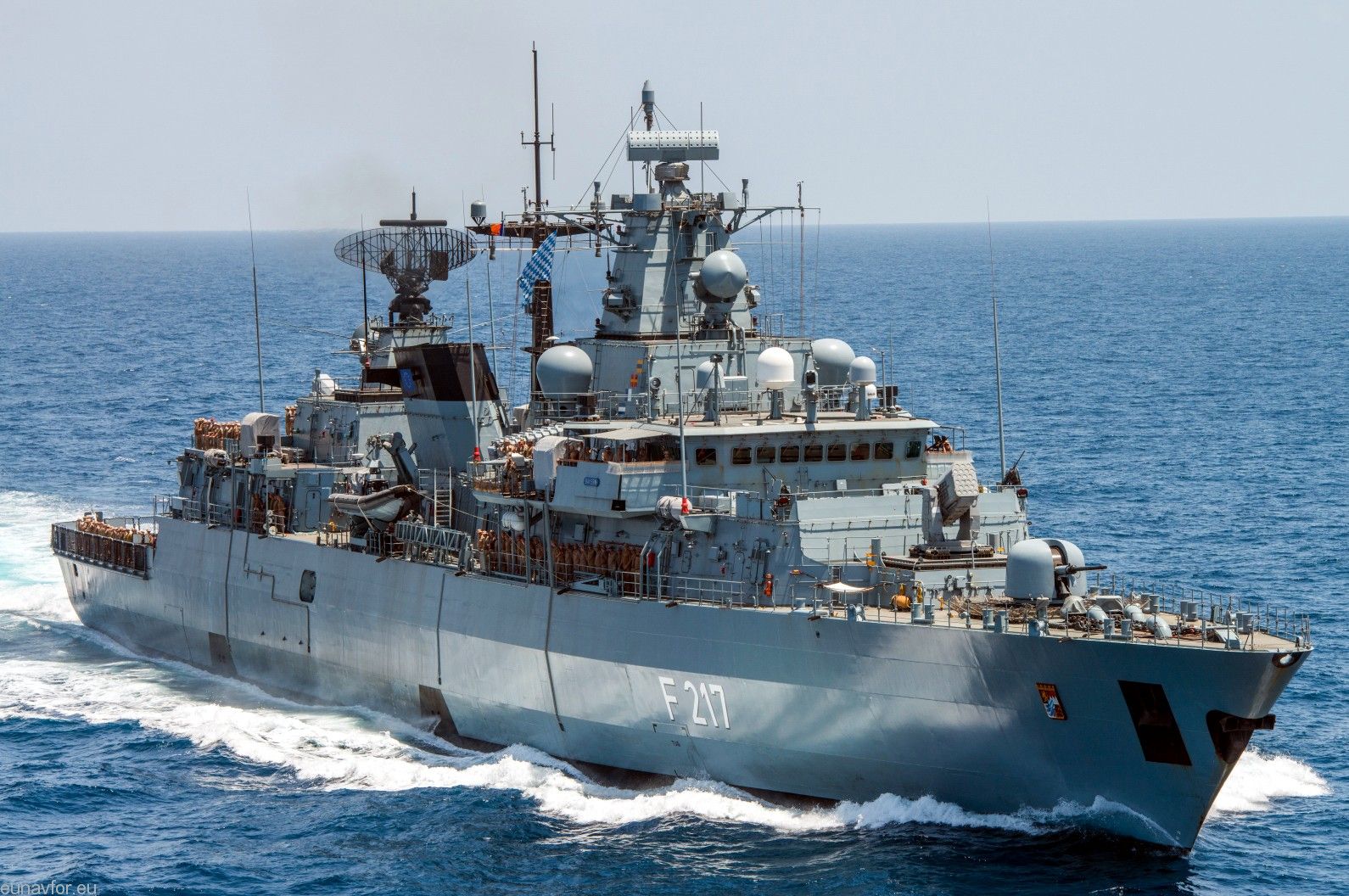

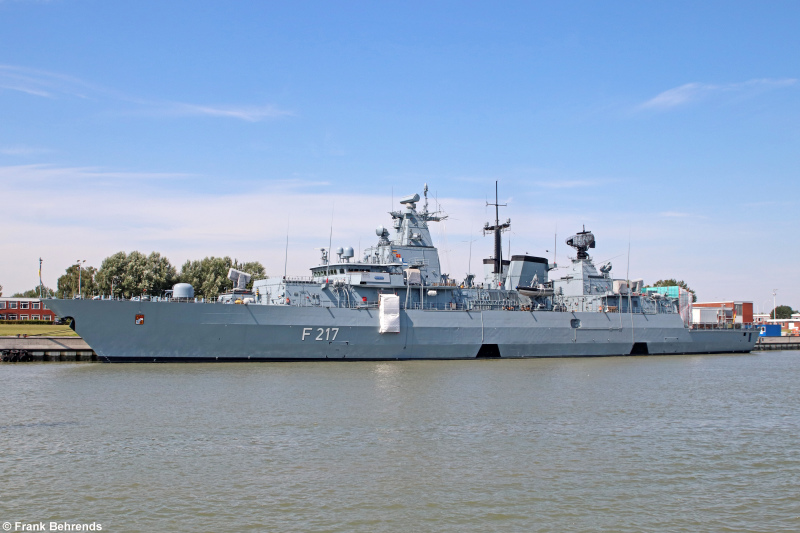

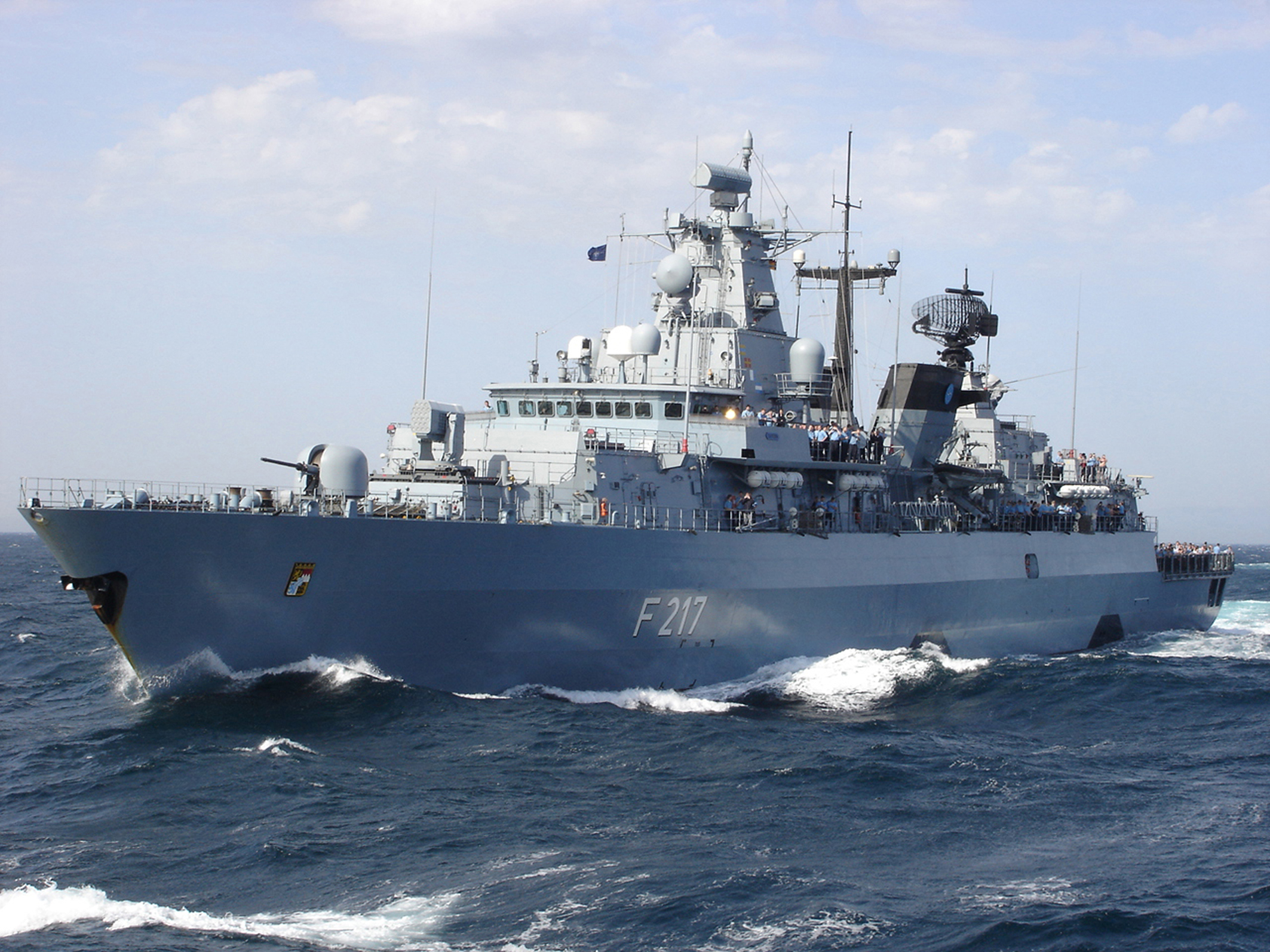

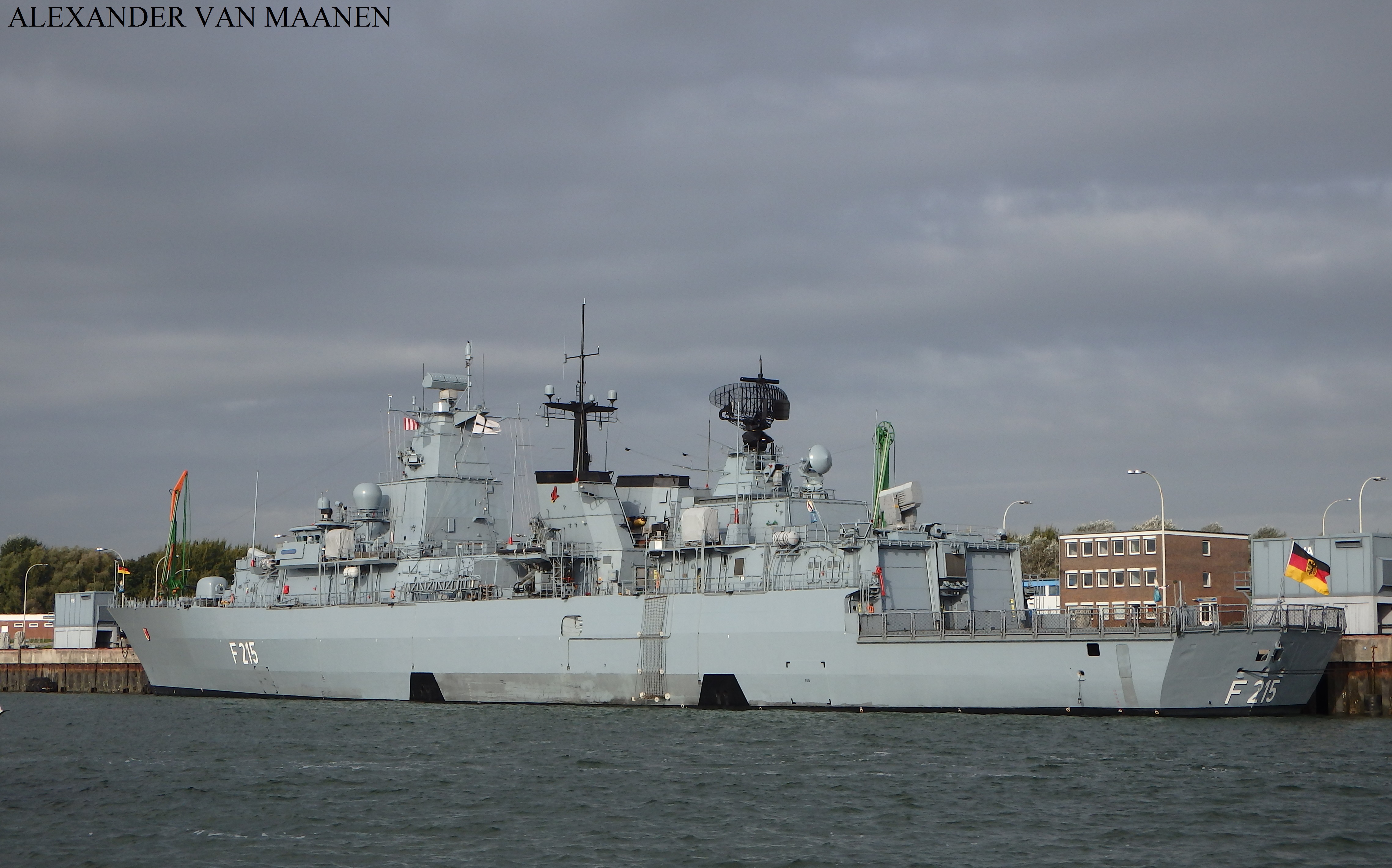

Pictures (4)
>
ship
✅
ship
✅
ship
✅
ship
✅
History
>
Builder : Nordseewerke , Emden
Keel laid : 16 December 1993
Launched : 30 June 1994
Commissioned : 15 June 1996
Specifications
>
Displacement :3,600 tons (4,490t full load)
Length :138.85 metres (455.5 ft)
Width :16.7 metres (55 ft)
Draft:4.35 metres (14.3 ft) (6.3 metres (21 ft) over sonar)
Propulsion :CODOG (combined diesel or gas) two propeller shafts , controllable pitch propellers two MTU 20V 956 TB92 diesel-engines , 8.14 MW each two General Electric LM2500 gas turbines , 38 MW total two Renk BGS 178 Lo gearboxes
Speed :>29 knots (54 km/h; 33 mph)
Range :4,000 nautical miles (7,400 km; 4,600 mi)at 18 knots (33 km/h; 21 mph)
Crew :26 officers, 193 enlisted
Military equipment
>
Sensors :One Thales LW08 air search D band radar one Thales SMART-S air/surface surveillance F band radar two Thales STIR 180 fire-control radar two Raytheon Redpath I band navigation radar one STN Atlas DSQS-23BZ hull-mounted sonar one STN Atlas TASS 6-3 (LFTASS)
Weapon systems :
Electronic warfare and decoys :1 EADS FL 1800S ECM suite two OTO-Melara SCLAR launcher four TKWA/MASS (Multi Ammunition Softkill System) decoy launcher (currently under procurement)
Armament :Naval guns: One OTO-Melara 76 mm /62Mk-75 multi-purpose naval gun Two Mauser BK-27 27 mm rapid-fire cannons Antiaircraft warfare : One Mk 41 Mod 3 vertical launch system for 16 Sea Sparrow antiaircraft missiles ( ESSM planned) CIWS: Two x Mk 49 launcher f
Embarked aviation :Two Sea Lynx helicopters equipped with ASW torpedoes , or air-to-surface missiles Sea Skua , and a heavy machine gun.
