Ident-ships

Sachsen

Call sign : F219
Class : F124 Sachsen class - Air-defence frigate
Country : Germany
Favorite :
Error in the images :
Pictures (4)
>

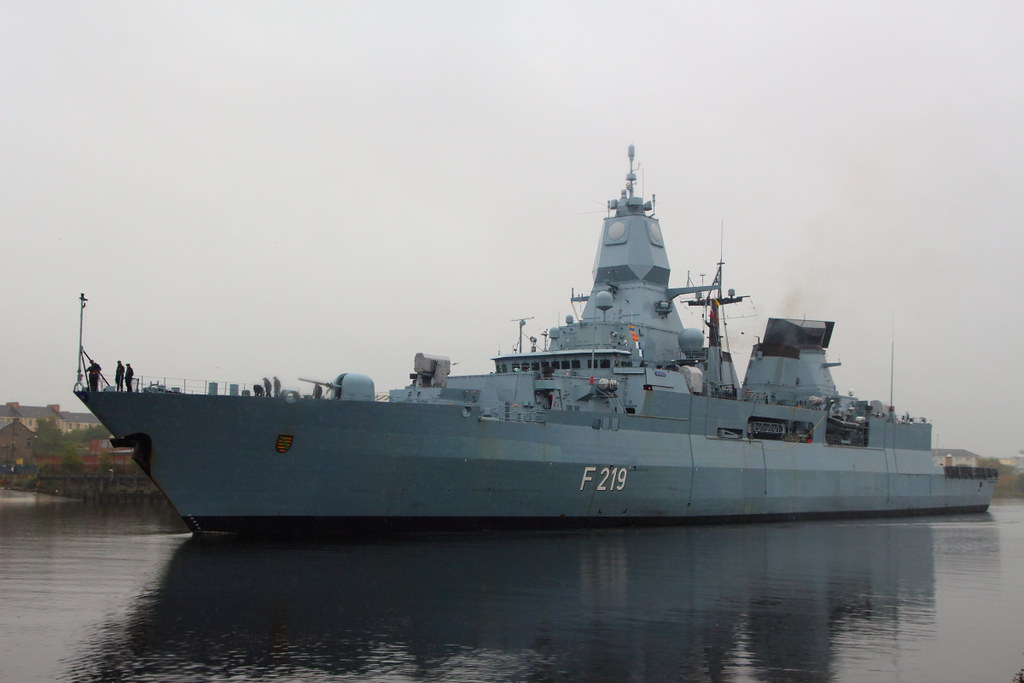

ship
✅

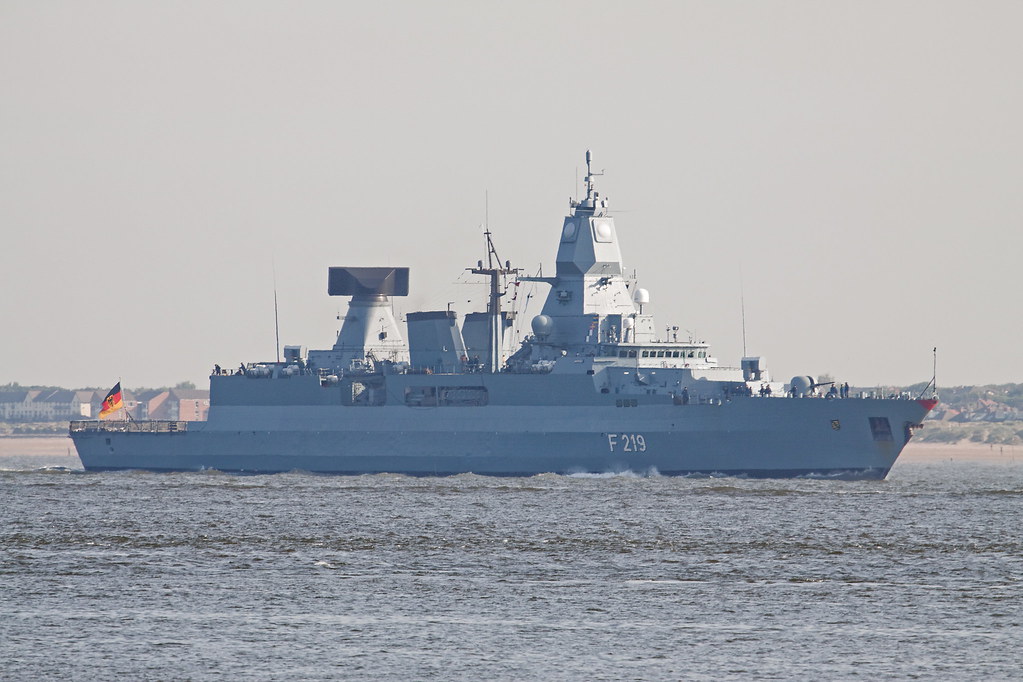

ship
✅

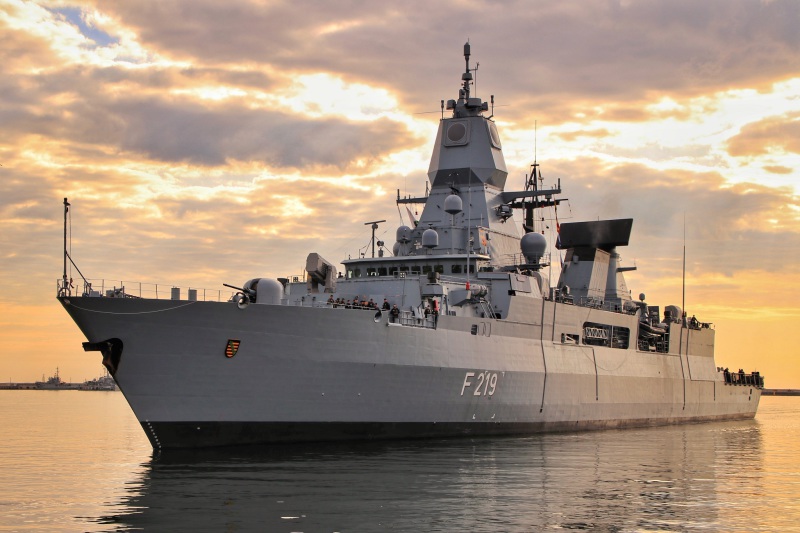

ship
✅
ship
✅
History
>
Builder : Blohm+Voss , Hamburg
Keel laid : 1 February 1999
Launched : 20 January 2001
Commissioned : 4 November 2004
Specifications
>
Displacement :5,800 tonnes
Length :143 m (469 ft)
Width :17.44 m (57.2 ft)
Draft:6 m (20 ft)
Propulsion :CODAG (combined diesel and gas) 2 propeller shafts , controllable-pitch propellers 2 MTU V20 diesel engines , 7.4 MW each 1 General Electric LM2500 gas turbine
Speed :29 knots (54 km/h; 33 mph)
Range :4,000 nmi (7,400 km; 4,600 mi)+ at 18 kn (33 km/h; 21 mph)
Crew :230 crew + 13 aircrew
Military equipment
>
Sensors :1 Thales Nederland SMART-L long-range air and surface surveillance radar ( D band ) 1 Thales Nederland APAR air and surface search, tracking and guidance radar ( I band ) 1 Thales Nederland Sirius IRST long-range infrared surveillance and tracking system
Weapon systems :
Electronic warfare and decoys :1 FL 1800 S II ECM suite 6 Sippican Hycor SRBOC launcher
Armament :1 × 76/62 Compact dual-purpose gun 2 × Mauser MLG 27 27 mm autocannons 1 MK. 41 VLS Tactical with 32 cells for 24 SM-2 Block IIIA and 32 RIM-162 ESSM (quad-packs per cell) surface-to-air missiles 4 × SMG Heavy Machine Gun 12.7 mm 2 × RAM launchers with
Embarked aviation :2 Sea Lynx Mk.88A or 2 NH90 helicopters equipped with torpedoes, air-to-surface missiles Sea Skua , and/or heavy machine gun.
