Ident-ships

Sachsen-Anhalt

Call sign : F224
Class : F125 Baden-Württemberg class - Frigate
Country : Germany
Favorite :
Error in the images :
Pictures (4)
>

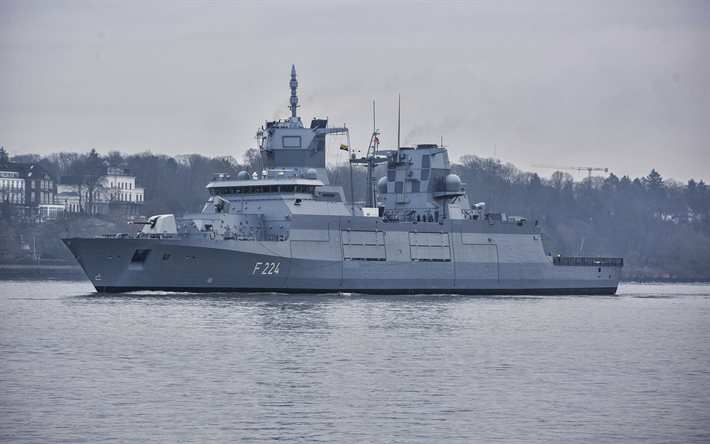

ship
✅

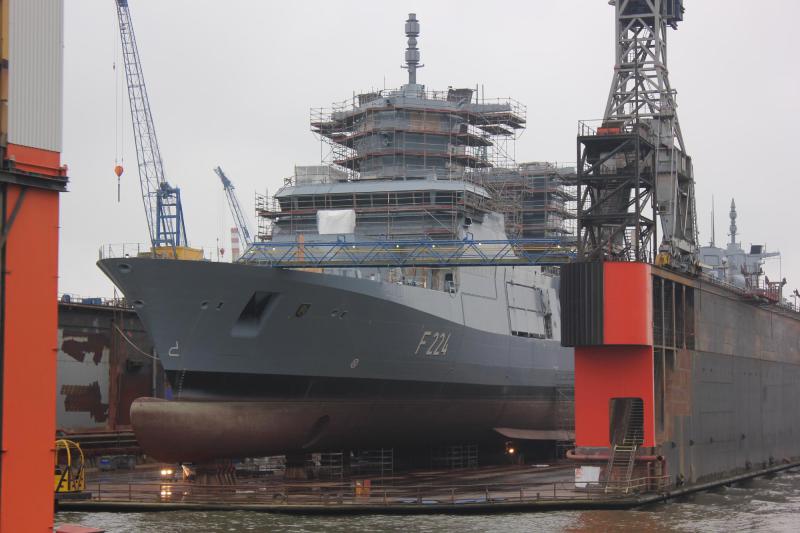

ship
✅

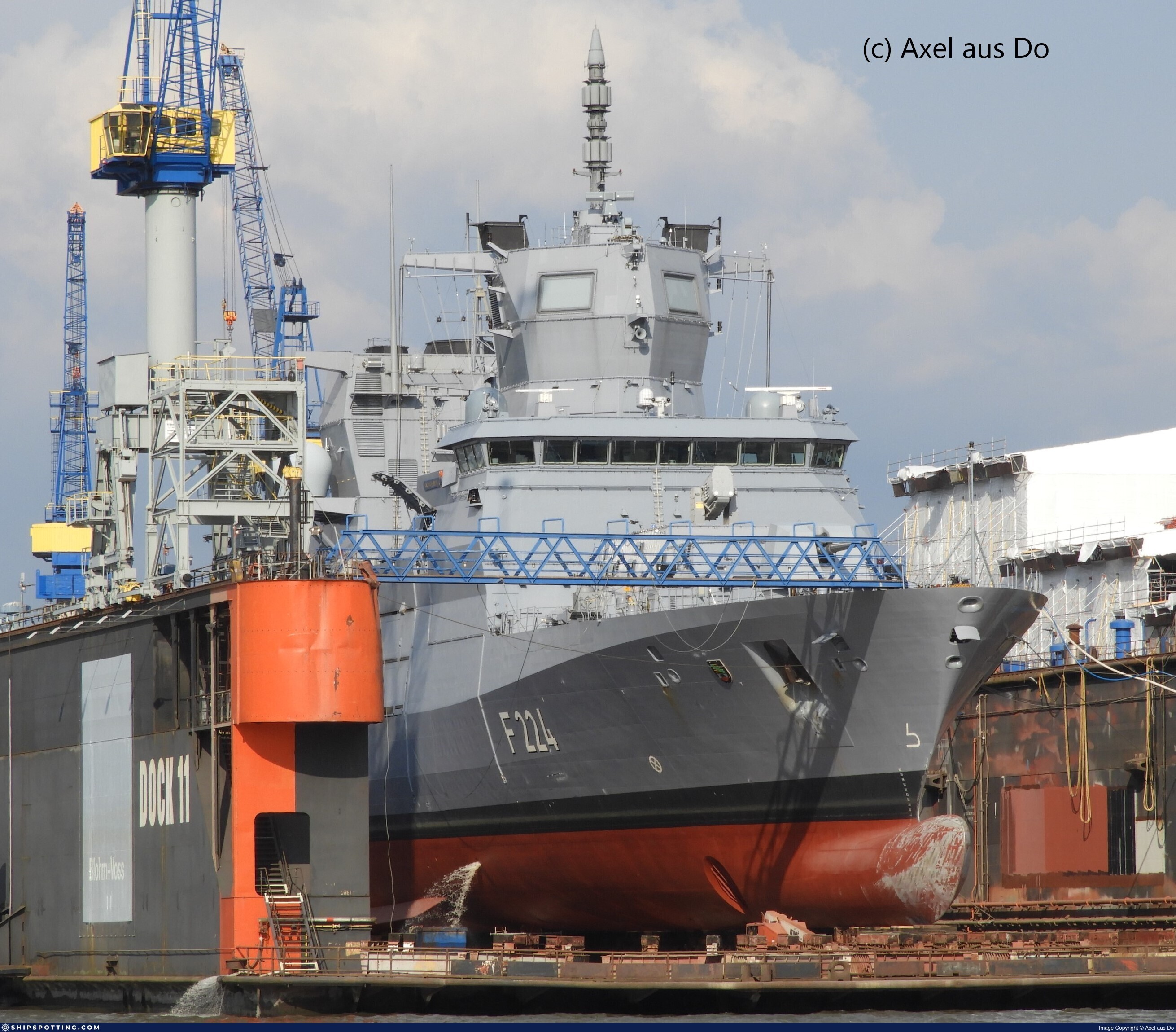

ship
✅

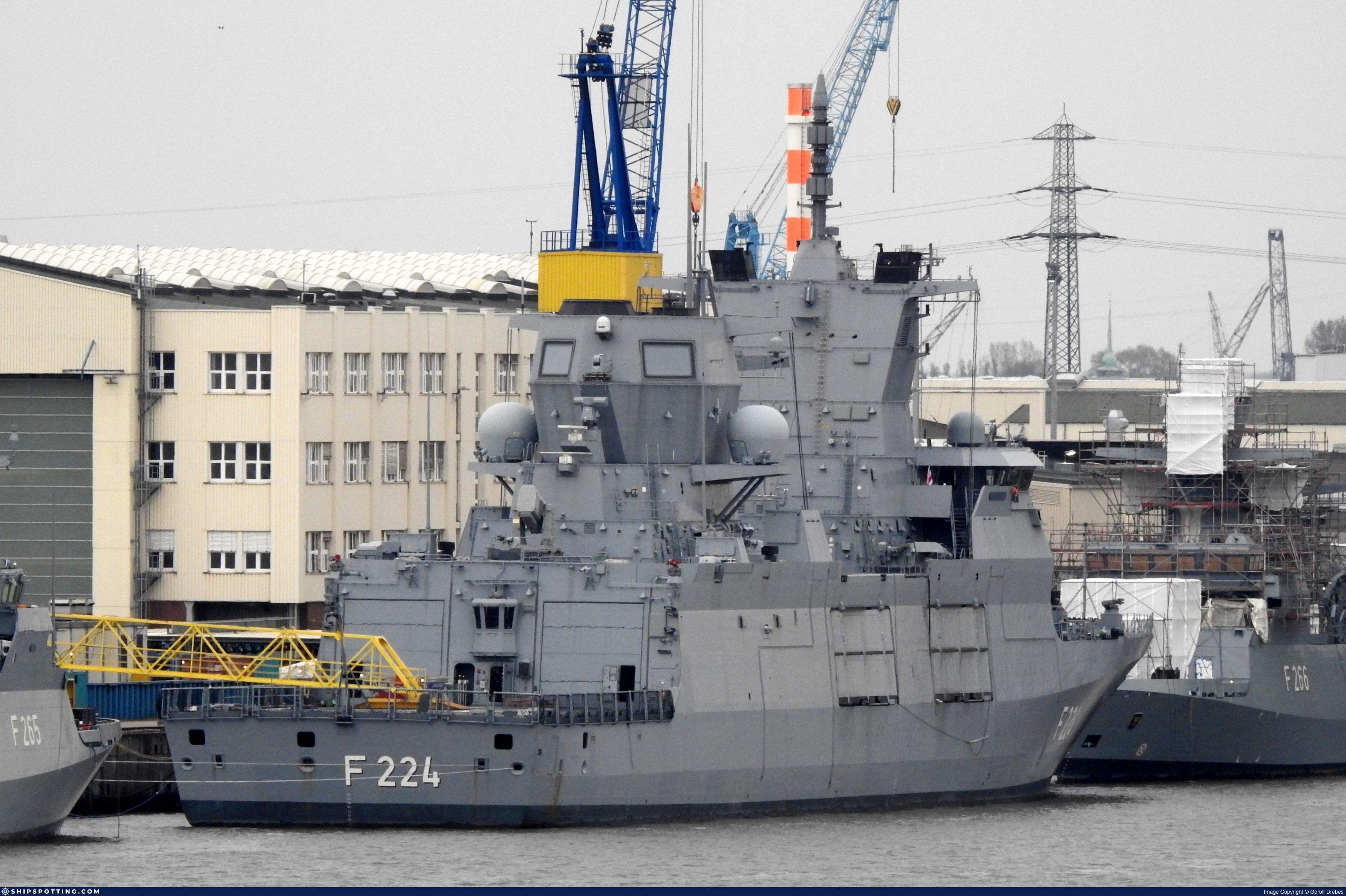

ship
✅
History
>
Builder : Lürssen , Wolgast Blohm+Voss , Hamburg
Keel laid : 4 June 2014
Launched : 4 March 2016
Commissioned : 17 May 2021
Specifications
>
Displacement :7,200 tonnes
Length :149.52 m (490 ft 7 in)
Width :18.80 m (61 ft 8 in)
Draft:5 m (16 ft 5 in)
Propulsion :CODLAG 1 × 20 MW gas turbine 2 × 4.7 MW electric motors 4 × 2.9 MW diesel generators 3 × gearboxes : one for each shaft and one to crossconnect the gas turbine to them 2 × shafts , driving controllable pitch propellers 1 × 1 MW bow thruster
Speed :20 knots (37 km/h) on diesel only, 26 kn (48 km/h) max.
Range :4,000 nautical miles (7,400 km)
Crew :190 (standard crew: 110)
Military equipment
>
Sensors :1 × Cassidian TRS-4D AESA radar 2(?) × navigation radars IFF diver and swimmer detection sonar (no anti-submarine sonar) Laser warning KORA-18 Combined RADAR and COMMS ESM from GEDIS Link 11 , Link 16 , Link 22 communications systems
Weapon systems :
Electronic warfare and decoys :TKWA/MASS (Multi Ammunition Softkill System) ECM
Armament :Naval guns: 1 × 127 mm lightweight Otobreda naval gun with guided VULCANO ammunition for land-attack missions (range: more than 100 km (62 mi)) 2 × 27 mm MLG 27 remote-controlled autocannons 5 × 12.7 mm Hitrole -NT remote-controlled machine gun turrets 2
Embarked aviation :2 × NH-90 helicopters
