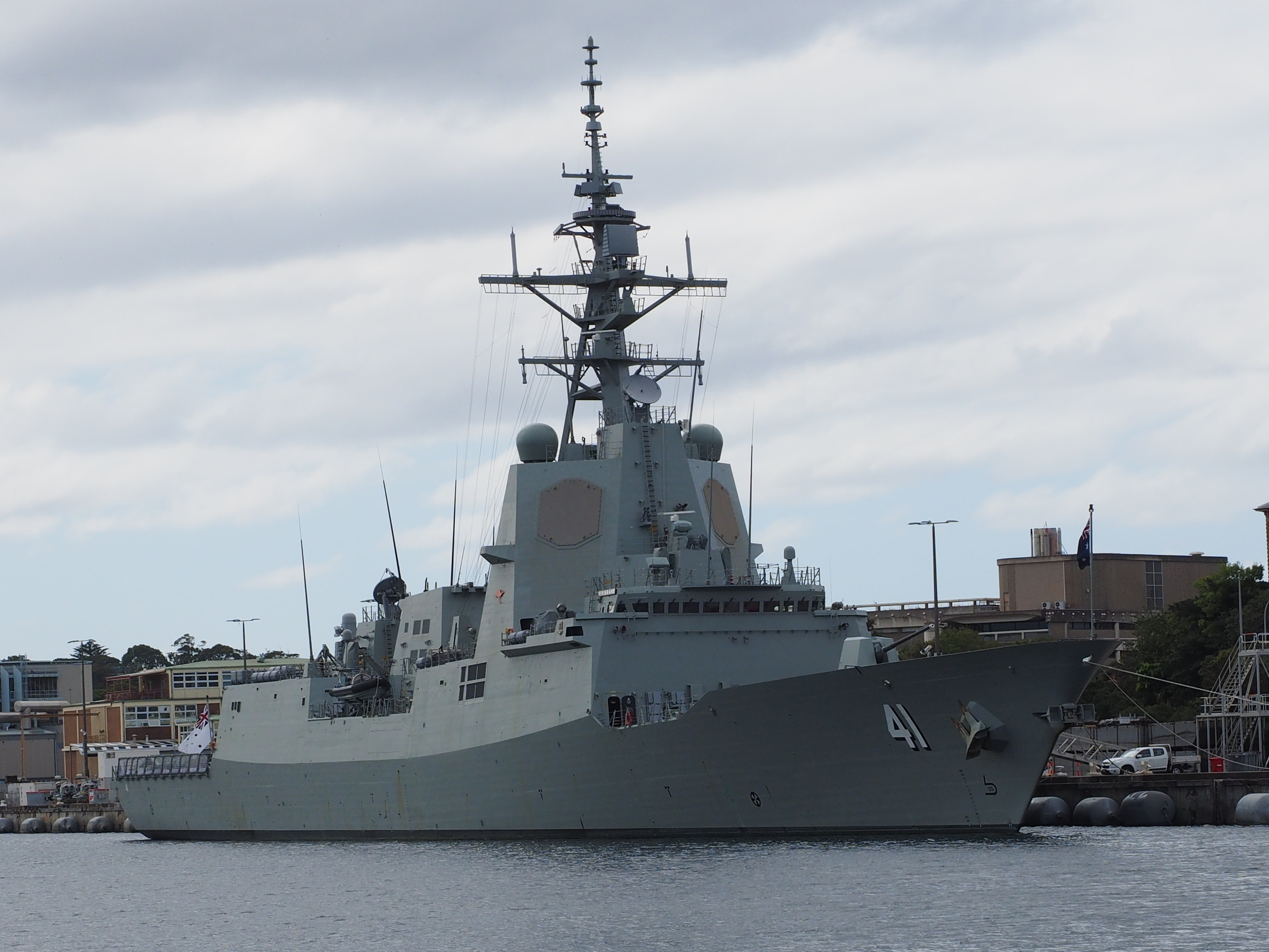

HMAS Brisbane
Pictures (4)
>
History
>
Builder :
Navantia
(designer)
AWD Alliance (project coordinator)
ASC
(primary shipbuilder)
Forgacs Group
(now Forgacs Marine and Defence) and
BAE Systems Australia
(module builders),
Osborne Naval Shipyard
Keel laid :
3 February 2014
Launched :
15 December 2016
Commissioned :
27 October 2018
Specifications
>
Displacement :7,000 tonnes (6,900 long tons; 7,700 short tons) full load
Length :147.2Â m (482Â ft 11Â in)
Width :18.6Â m (61Â ft 0Â in) maximum
Draft:5.17Â m (17Â ft 0Â in)
Propulsion :Combined diesel or gas
(CODOG) arrangement
2 × General Electric Marine model 7LM2500-SA-MLG38 gas turbines, 17,500 kW (23,500 hp) each
2 × Caterpillar 3616 diesel engines, 5,650 kW (7,580 hp) each
2 ×
controllable pitch propellers
Speed :Over 28
knots
(52Â km/h; 32Â mph)
Range :Over 5,000
nautical miles
(9,300Â km; 5,800Â mi) at 18 knots (33Â km/h; 21Â mph)
Crew :186 + 16 aircrew
Accommodation for 234
Military equipment
>
Sensors :Aegis combat system
Lockheed Martin
AN/SPY-1
D(V) S-band radar
Northrop Grumman AN/SPQ-9B X-band pulse Doppler horizon search radar
Raytheon Mark 99 fire-control system with two
continuous wave illuminating radars
2 × L-3 Communications SAM Electronics X-
Weapon systems :
Electronic warfare and decoys :ITT EDO Reconnaissance and Surveillance Systems ES-3701 ESM radar
SwRI MBS-567A communications ESM system
Ultra Electronics Avalon Systems multi-purpose digital receiver
Jenkins Engineering Defence Systems low-band receiver
4 ×
Nulka
decoy launchers
4 × 6
Armament :Missiles:
48-cell
Mark 41 Vertical Launch System
firing:
RIM-66 Standard 2 missile
RIM-162 Evolved Sea Sparrow missile
2 × 4-canister
Harpoon
missile launchers
Torpedoes:
2 × 2-tube
Mark 32 Mod 9 torpedo launchers
firing
MU90 Impact
torpedoes
Guns:
1 ×
5"
Embarked aviation :1 x
MH-60R Seahawk
